Description

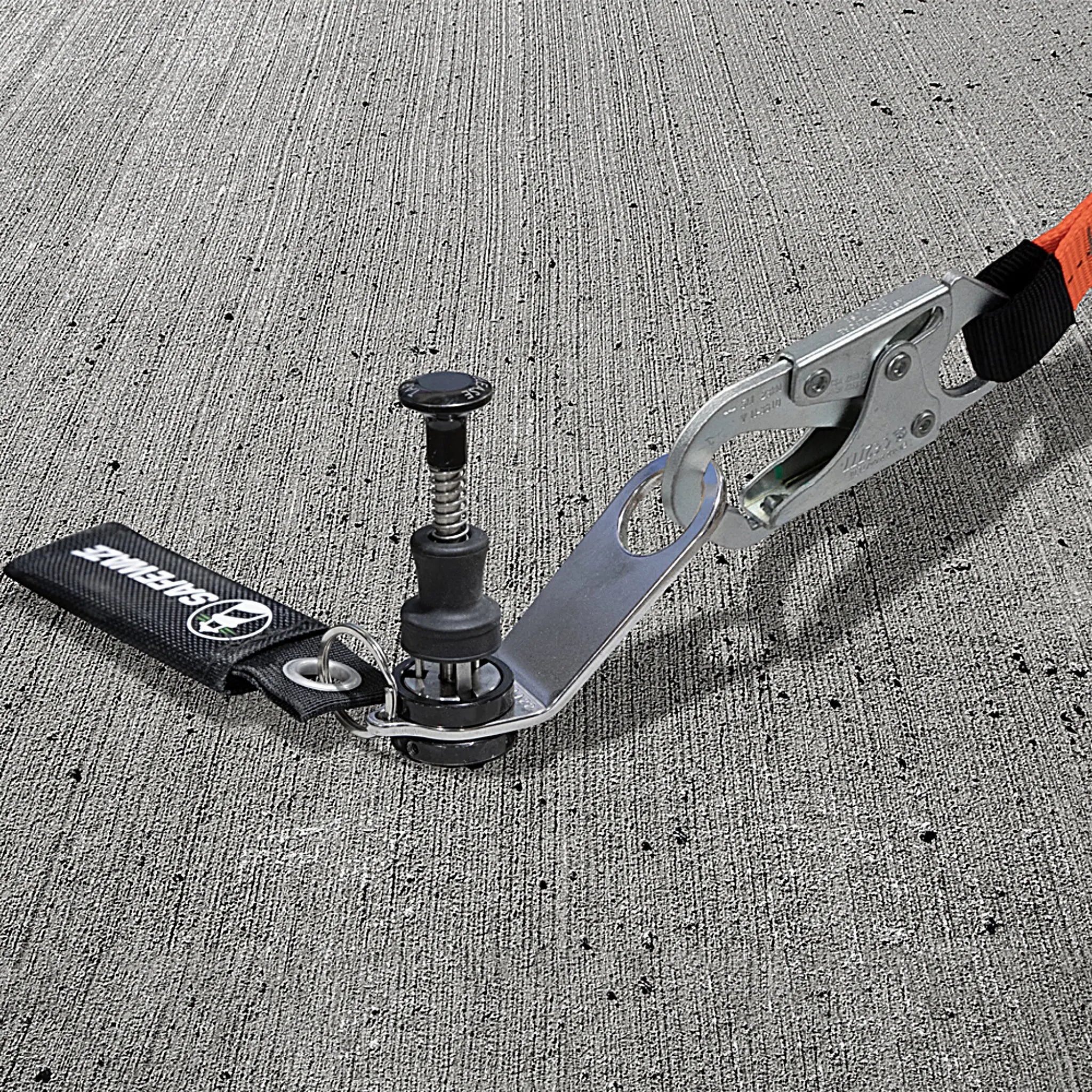

The Removable Concrete Anchor is a compact, reusable anchor with reliable durability for repeated use in concrete applications, easy to install in seconds with quick trigger removal by hand, or optional assist with a simple hammer tap. The trusted design ensures the anchor offers secure protection while you work and releases quickly when you need to move on.
Features:
- Removable and reusable with reliable durability
- 360° rotating connection point for increased user mobility

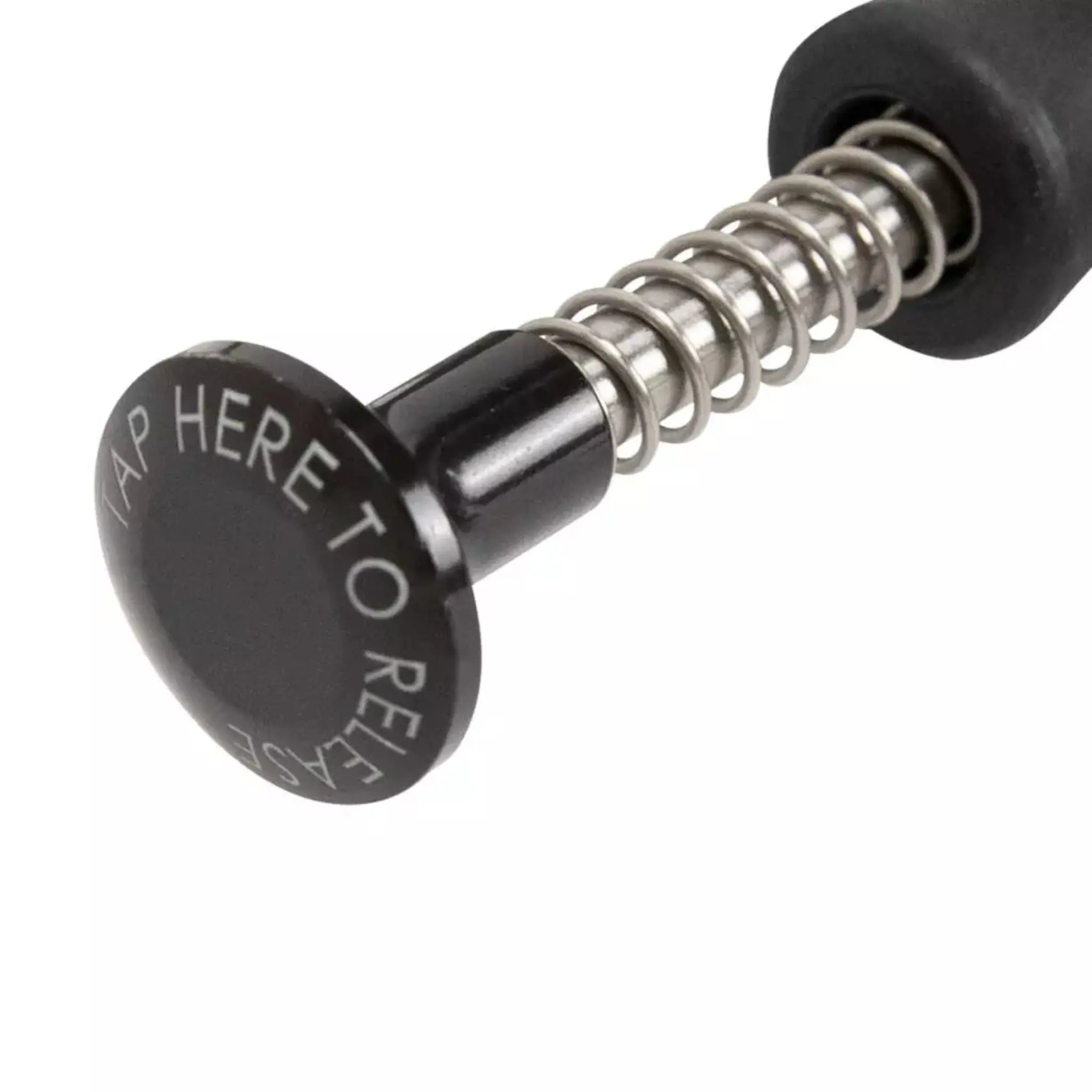

- Easy trigger provides quick release for repeated use
- Durable cap for optional hammer assisted removal
- Corrosion-resistant stainless steel construction
- Protective label cover ensures compliance
- For horizontal, vertical and overhead use - including use with HLLs
- 3/4" x 3" drilled hole required for installation
Specifications:
Materials: Stainless steel body and D-ring, plated steel cap, nylon trigger, polyester label cover
Weight: 0.9 lbs. (0.4 kg)
Length: Overall length 6.5" (165 mm), exposed length 3.7" (94
mm)
Anchor Clearance: 6" (25 mm) diameter
Hole Depth: 3" (76 mm)
Hole Diameter: 0.75" (19 mm)
Minimum Breaking Strength (when installed in reinforced concrete): 5,000 lbs. (in 3,000 PSI concrete)
10,000 lbs. (in 4,000 PSI or higher concrete)
Working Load Limit: 1,800 lbs. (in 4,000 PSI or higher concrete)
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18-2017 Type T
OSHA Standards: 1926.502, 1910.140, 1910.66
