Description
| Manufacturer | Honeywell |
|---|---|
| Brand | Honeywell Miller |
| Main Category | Fall Protection |
| Color | Gray |
| Packaging | 1EA |
| Weight | 0.1 lb |

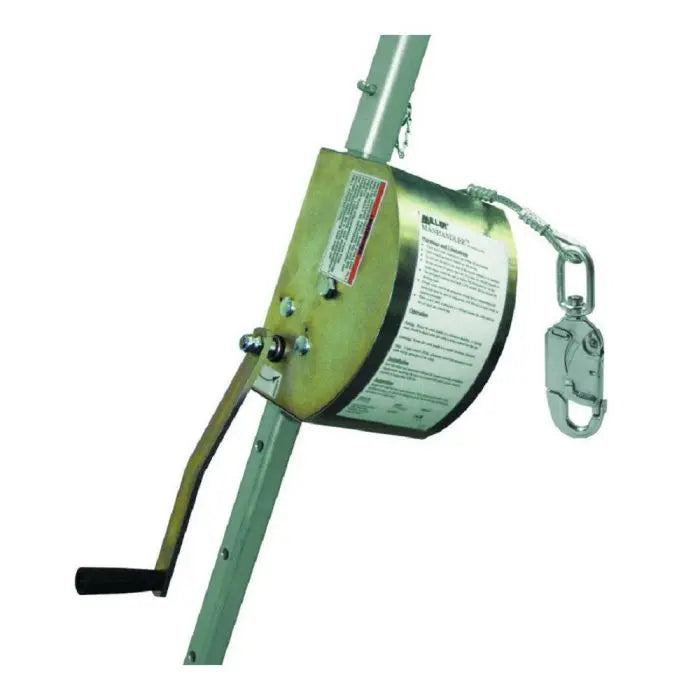

The Miller® ManHandler™ Hoist is the perfect solution for a range of applications including confined space entry, rescue, positioning and personnel/material handling. A secondary fall arrest system is recommended for fall protection.
FEATURES:
Effortless lifting and lowering with 5:1 gear ratio
Anti-backlash crank handle braking system that prevents freewheeling
Built-in mounting bracket
350 lb. (159 kg) working capacity
Color: Gray
Size: One Size
1 Each
Materials
Housing: Steel, Yellow Chromate Plating (Zinc)
Drum: Steel Weldment, Yellow Chromate Plating (Zinc)
Shaft: 4140 Steel
Springs: Stainless Steel
Brake Pawls: Stainless Steel
Brake Pads: Fiber Composite
Bearings: Oil Impregnated Bronze
Hardware: Grade 5, Zinc Plated
Snap Hook: Drop Forged Steel
Cable: 3/16” galvanized steel or stainless steel
Technical
Maximum Working Load: 350lbs (159kg)
Brake Systems: Holding and Inertia – friction disk
Gear Ratio: 5:1
Retrieval Speed: 20ft/min
Length: 65ft (20m), 100ft (30.5m)
Weight (65FT): 39lbs (18kg)
Weight (100FT): 41.275lbs (19kg)
Certification
8442-Z7/65FT and 8442-Z7/100FT: ANSI Z359-2007 compliant for connectors which meet the 3600lb gate requirements, ANSI Z117.1, and OSHA 1910.146 requirements.
SP369 REV.C
Warnings & Limitations
Users must read, understand, and follow all instructions.
Only trained personnel should use this device.
Do not use the unit if any part of the system appears to be damaged.
Do not attempt to service this unit. If it does not operate properly or needs repair, return the unit to
Miller for service.
The designed working load limit is 350 pounds. Do not exceed the working load.
Except when used as an emergency rescue device, independent fall protection must be used in conjunction with this unit to raise, lower or suspend personnel.
When winch cable is attached to a workers harness, the cable must be free of slack and remain taut.
See operation and instruction manual for proper mounting procedures. Applications requiring the use of a personal fall arrest system must be capable of supporting 5,000lbs.
